| Maximum load | 800N |
| Maximum stroke | 650mm |
| Noise level | ＜ 48dB |
| Tube type | Outside: 70x70mm, Center: 65x65mm, Inside: 60x60mm |
| Product appearance | Hole-free design |
| Operating temperature | 10℃-40℃ |
| Mounting dimensions | 560mm |
| Maximum speed | 35mm/s |
| Feedback method | Hall Feedback |
| Column type | Inverted L-Shape |
| Surface finish | Electrostatic Plastic Powder Coating |
| Colors | White (RAL9016), Black (RAL9005), Gray (RAL9006) |
1. OKIN lifting columns are characterized by high efficiency and stability, smooth operation, and the special gears and screw assembly make it always silent lifting and lowering process.
2. The rounded motor box design makes the product beautiful and at the same time, avoids personal injury caused by user collision.
3. Safe and powerful OKIN lifting columns can be effectively used in product scenarios that comply with EN527 and BIFMA X5.5.

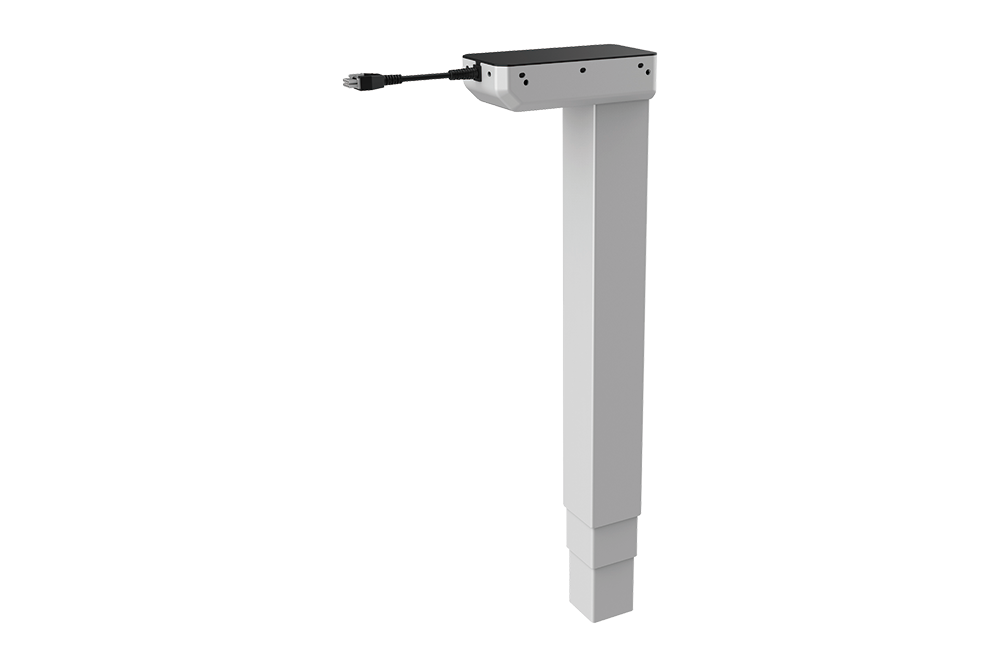

Achieve seamless ergonomic transitions with this inverted L-shaped electric desk lifting column, engineered to meet the demands of modern office systems and adjustable furniture applications. Designed to deliver consistent power and smooth motion, this column is ideal for height-adjustable desks that balance performance with aesthetics.
Capable of supporting up to 800N of dynamic load, this lifting column handles heavy desktop configurations with ease. The integrated motor enables a 650mm stroke, offering users a generous range of motion—from sitting to standing positions.
Thanks to its advanced internal design and motor damping system, operation remains exceptionally quiet (under 48dB)—ideal for shared workspaces, educational settings, and healthcare environments where low noise is essential.
The column features a triple-stage square telescoping structure with graduated tube dimensions:
Outer: 70×70mm
Center: 65×65mm
Inner: 60×60mm
This configuration ensures exceptional vertical stability, smooth lift alignment, and minimal wobble, even under load. The hole-free exterior enhances its sleek appearance while minimizing dust and debris accumulation—ideal for clean or modern design settings.
Equipped with Hall effect sensors, the column provides accurate positional tracking, making it ideal for synchronized multi-leg desk systems. With a maximum lifting speed of 35mm/s, it allows for fast, smooth transitions without compromising control or user safety.
Its 560mm mounting footprint supports easy integration into a variety of frame and table systems, without sacrificing lift capacity.
The column is coated with a durable electrostatic powder finish, offering resistance to scratches, corrosion, and surface wear. Available in three refined standard colors:
White (RAL9016) – Clean and clinical for healthcare or modern interiors
Black (RAL9005) – Bold and minimal for executive or contemporary spaces
Gray (RAL9006) – Neutral and industrial for multipurpose applications
These finishes make it easy to match the column with diverse desktop materials, frame designs, and interior aesthetics.
Whether you're developing ergonomic office workstations, medical equipment tables, or collaborative benching systems, this inverted L-shaped desk lifting column offers a robust, quiet, and visually adaptable foundation for high-performance, height-adjustable solutions.
