| Maximum load | 800N |
| Maximum stroke | 650mm |
| Noise level | ＜ 48dB |
| Tube type | Outside: 80x50mm, Center: 75x45mm, Inside: 70x40mm |
| Product appearance | Hole-free design |
| Operating temperature | 10°C-40°C |
| Mounting dimensions | 560mm |
| Maximum speed | 35mm/s |
| Feedback method | Hall Feedback |
| Column type | Formal L-shape |
| Surface finish | Electrostatic Plastic Powder Coating |
| Colors | White (RAL9016), Black (RAL9005), Gray (RAL9006) |
1. OKIN lifting columns are characterized by high efficiency and stability, smooth operation, and the special gears and screw assembly make it always silent lifting and lowering process.
2. The rounded motor box design makes the product beautiful and at the same time, avoids personal injury caused by user collision.
3. Safe and powerful OKIN lifting columns can be effectively used in product scenarios that comply with EN527 and BIFMA X5.5.

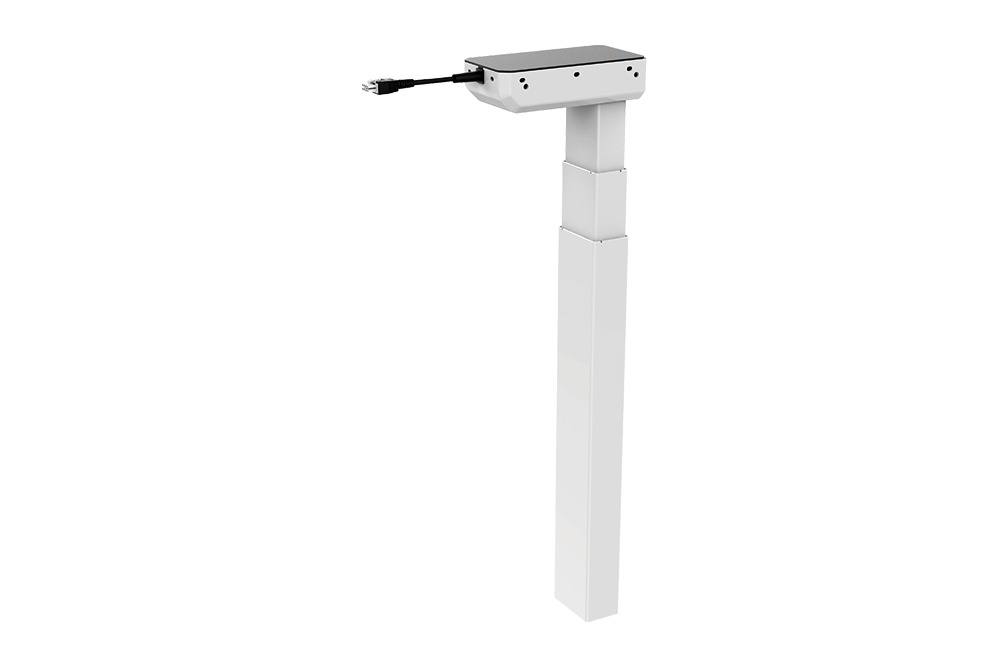

The Motorized Lifting Column redefines vertical actuation by combining high performance, sleek minimalism, and structural integrity. Designed for environments where precise height adjustment and quiet operation are essential—such as executive desks, medical equipment, or industrial workstations—this column offers the ideal balance of power and finesse.
Engineered to support loads of up to 800N, this column delivers robust lifting power with consistently smooth motion. Its 650mm stroke range accommodates a wide variety of elevation needs, making it perfect for dynamic workspaces or automated systems requiring adaptive height control.
A 560mm installation dimension allows for easy integration into compact chassis or minimalist system designs—without compromising on lift capability or structural stability.
Utilizing a three-stage rectangular telescoping structure, this column ensures:
Exceptional rigidity and vertical alignment
Wobble-free movement, even at full extension
Its nested design provides maximum lift efficiency within a minimal footprint. The seamless, hole-free outer shell contributes to a clean aesthetic while minimizing dust or debris ingress—ideal for sterile or professional environments.
Driven by a precision electric motor, the column achieves lift speeds of up to 35mm/s, while maintaining a noise level below 48dB. This ensures quiet, distraction-free operation in offices, labs, or shared workspaces.
An integrated Hall effect sensor provides real-time position tracking, enabling accurate control and synchronization in multi-column systems—ideal for platforms requiring repeatable or coordinated movement.
Finished with a resilient electrostatic powder coating, the column offers long-term protection against scratches, corrosion, and wear. Available in three refined color options:
White (RAL9016) – For clinical, clean, or bright environments
Black (RAL9005) – For minimalist, executive, or modern aesthetics
Gray (RAL9006) – For a neutral, professional appearance
The formal L-shaped construction enhances lateral stability and offers optimal support for large or heavy surfaces.
Whether you're designing sit-stand desks, modular medical systems, or next-generation industrial platforms, this motorized lifting column delivers a powerful combination of precision, durability, and refined appearance—meeting both functional and aesthetic demands in demanding environments.
