| Maximum load | 800N |
| Maximum stroke | 500mm |
| Noise level | ＜ 48dB |
| Tube type | Outside: 80x50mm, Inside: 75x45mm |
| Product appearance | Hole-free design |
| Operating temperature | 10°C-40°C |
| Mounting dimensions | 650mm |
| Maximum speed | 25mm/s |
| Feedback method | Hall Feedback |
| Column type | Formal L-shape |
| Surface finish | Electrostatic Plastic Powder Coating |
| Colors | White (RAL9016), Black (RAL9005), Gray (RAL9006) |
1. OKIN lifting columns are characterized by high efficiency and stability, smooth operation, and the special gears and screw assembly make it always silent lifting and lowering process.
2. The rounded motor box design makes the product beautiful and at the same time, avoids personal injury caused by user collision.
3. Safe and powerful OKIN lifting columns can be effectively used in product scenarios that comply with EN527 and BIFMA X5.5.

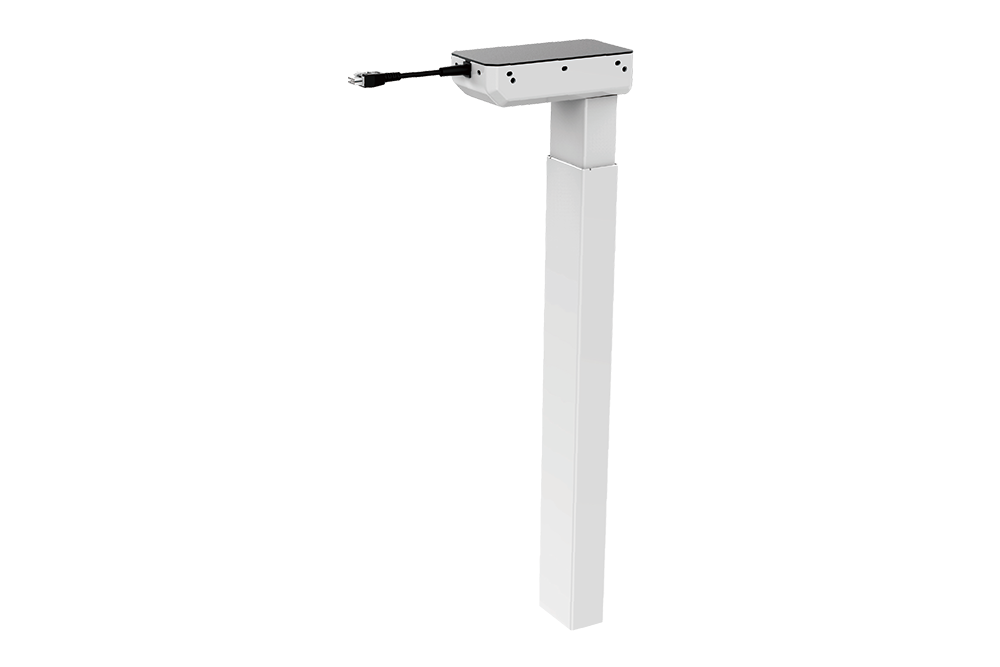

Elevate your workspace or application with this high-efficiency telescopic lifting column, engineered for precision, low-noise operation, and seamless vertical mobility. Designed to support modern ergonomic systems, it combines structural strength with refined aesthetics, making it ideal for smart desks, industrial control stations, and healthcare-grade lifting platforms.
Built to handle loads of up to 800N, this column delivers reliable lifting performance across a wide range of applications. Its 500mm stroke range enables smooth, controlled height transitions, suitable for both light-duty and heavy-duty ergonomic setups.
The 650mm mounting length offers space-saving integration while maintaining full vertical travel capability—perfect for compact frame systems where every millimeter counts.
Unlike conventional round tubes, this model features a rectangular telescopic structure that provides:
Enhanced torsional resistance
Improved lateral stability
These features make it particularly suitable for wide desktops or equipment requiring rigid vertical motion. The hole-free outer surface ensures a clean, modern finish while reducing dust accumulation—ideal for medical, laboratory, or office environments.
Quiet Operation with Precision Feedback
With a maximum speed of 25mm/s and noise levels under 48dB, this column delivers whisper-quiet performance, making it ideal for shared or noise-sensitive settings.
An integrated Hall effect sensor provides real-time positional feedback, enabling precise control and synchronized movement in multi-column configurations.
Each unit is coated with durable electrostatic powder coating for enhanced wear resistance and sleek appearance. Available in three classic color options:
White (RAL9016)
Black (RAL9005)
Gray (RAL9006)
The formal L-shaped architecture provides both mechanical integrity and visual balance, making it an ideal choice for designers seeking both form and function.
This telescopic lifting column is a perfect blend of strength, style, and intelligent design, making it an excellent solution for manufacturers and system integrators looking for dependable performance in an elegant, space-efficient package.
