| Maximum load | 800N |
| Maximum stroke | 500mm |
| Noise level | ＜ 48dB |
| Tube type | Outside: 70x70mm, Inside: 75x45mm |
| Product appearance | Hole-free design |
| Operating temperature | 10°C-40°C |
| Mounting dimensions | 650mm |
| Maximum speed | 25mm/s |
| Feedback method | Hall Feedback |
| Column type | Inverted L-Shape |
| Surface finish | Electrostatic Plastic Powder Coating |
| Colors | White (RAL9016), Black (RAL9005), Gray (RAL9006) |
1. OKIN lifting columns are characterized by high efficiency and stability, smooth operation, and the special gears and screw assembly make it always silent lifting and lowering process.
2. The rounded motor box design makes the product beautiful and at the same time, avoids personal injury caused by user collision.
3. Safe and powerful OKIN lifting columns can be effectively used in product scenarios that comply with EN527 and BIFMA X5.5.

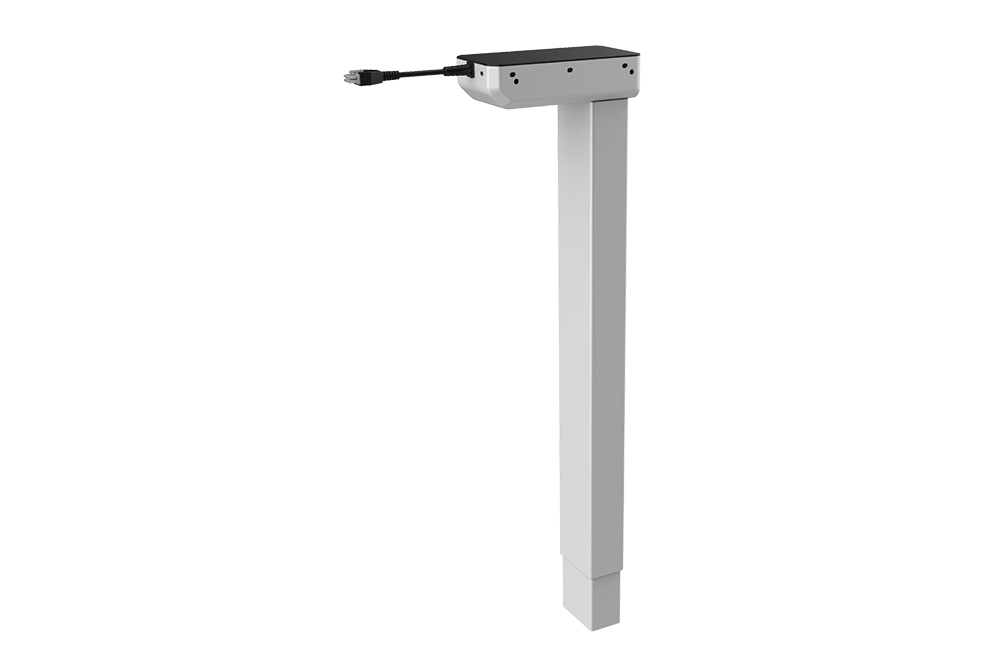

Designed for uncompromised performance, this telescopic lifting column seamlessly integrates refined aesthetics, robust mechanical engineering, and precision-controlled motion. Featuring an inverted L-shaped architecture, it is ideal for space-constrained applications that require ergonomic adjustability, structural stability, and clean system integration.
Engineered to meet the demands of dynamic and load-intensive applications, this column offers a maximum load capacity of 800N. Its powerful motor, combined with precision-engineered internal components, delivers a stroke length of 500mm, enabling smooth and comfortable transitions across a wide range of working heights—perfect for sit-stand desks, examination stations, or control consoles.
Despite its power, the column maintains exceptionally quiet operation, with noise levels kept below 48dB, making it well-suited for offices, healthcare settings, and customer-facing environments.
This model features a rectangular telescopic configuration for enhanced stability and motion control:
Outer tube: 70×70mm – ensures a broad, stable base
Inner tube: 75×45mm – delivers smooth, balanced movement
The hole-free outer design not only creates a sleek, modern appearance but also minimizes dust ingress, enhancing durability and simplifying maintenance. The inverted L-shaped form factor offers added flexibility in environments with asymmetric mounting needs or space limitations.
Equipped with a Hall sensor-based feedback system, the column provides accurate positional tracking—essential for applications that require synchronized multi-column movement or programmable height presets. The integrated feedback ensures responsive, precise, and repeatable performance in every use case.
The column is coated with a durable electrostatic plastic powder finish, offering excellent resistance to scratches, abrasion, and corrosion, while maintaining a uniform, professional appearance. Available in three standard colors:
White (RAL9016) – Clean and clinical, ideal for medical or minimalist interiors
Black (RAL9005) – Sleek and bold, suited for high-end office or premium equipment
Gray (RAL9006) – Neutral and industrial, perfect for multipurpose use
A 650mm mounting length ensures secure installation while maintaining the column’s slim vertical profile.
Perfect for adjustable workstations, medical furniture, and next-generation industrial systems, this inverted L-shaped telescopic lifting column delivers both form and function—quietly, precisely, and dependably.
