| Maximum load | 800N |
| Maximum stroke | 650mm |
| Noise level | ＜ 48dB |
| Tube type | Outside: 70x70mm, Inside: 65x65mm |
| Product appearance | Hole-free design |
| Operating temperature | 10°C-40°C |
| Mounting dimensions | 650mm |
| Maximum speed | 25mm/s |
| Feedback method | Hall Feedback |
| Column type | Formal L-shape |
| Surface finish | Electrostatic Plastic Powder Coating |
| Colors | White (RAL9016), Black (RAL9005), Gray (RAL9006) |
1. OKIN lifting columns are characterized by high efficiency and stability, smooth operation, and the special gears and screw assembly make it always silent lifting and lowering process.
2. The rounded motor box design makes the product beautiful and at the same time, avoids personal injury caused by user collision.
3. Safe and powerful OKIN lifting columns can be effectively used in product scenarios that comply with EN527 and BIFMA X5.5.

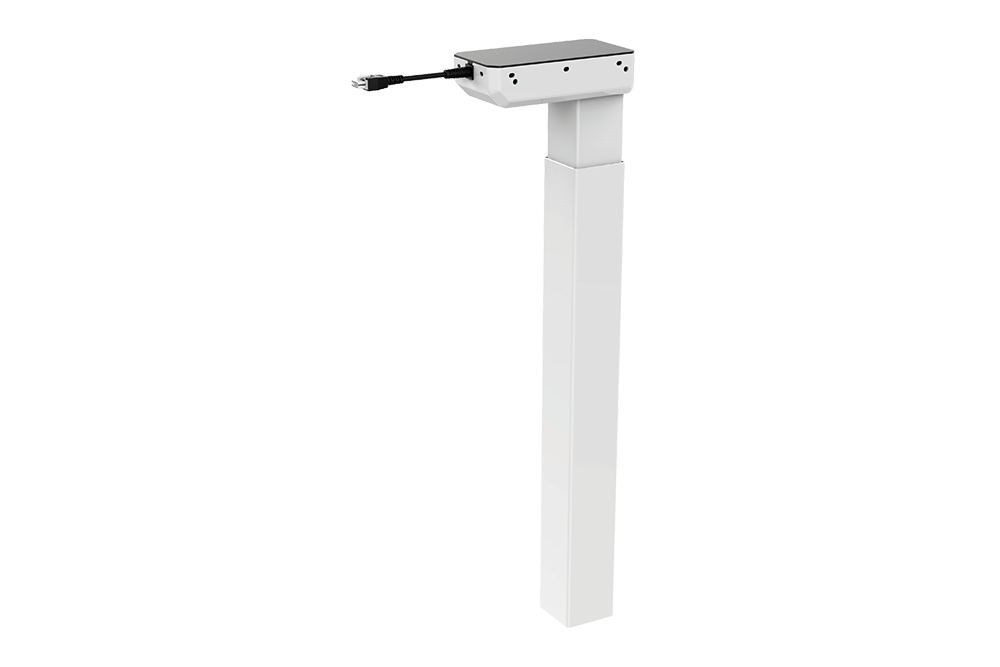

Experience dependable lifting performance with this formally structured L-shaped table lifting column, engineered to deliver stable, quiet, and efficient height adjustment. With its hole-free exterior, compact rectangular profile, and robust mechanical specs, this model is optimized for integration into modern adjustable tables, benches, and workstations.
Capable of generating up to 800N of lifting force, this column offers reliable support for desktops, equipment, and other work surfaces—even under heavy loads. Its 650mm stroke range allows for extended vertical travel, enabling ergonomic flexibility across a wide variety of user needs.
With a noise level kept below 48 decibels during operation, it ensures a quiet environment, making it ideal for offices, healthcare facilities, and collaborative spaces.
The column features a two-stage telescoping square tube structure:
This consistent rectangular design improves symmetry, enhances lateral stability, and delivers a smooth, wobble-free lifting experience. The hole-free outer profile provides a clean, minimal aesthetic—perfect for high-end furniture and commercial-grade applications.
An integrated Hall effect sensor enables precise positional monitoring, making it easy to synchronize motion in dual- or multi-column setups. This is especially beneficial for motorized desk systems that require accuracy and repeatable height presets.
The surface is finished with a durable electrostatic plastic powder coating, offering excellent resistance to wear, corrosion, and environmental stress. Choose from three refined standard finishes:
White (RAL9016) – Bright and clean for clinical or modern interiors
Black (RAL9005) – Bold and sleek for contemporary designs
Gray (RAL9006) – Neutral and professional for versatile applications
Operating reliably in ambient temperatures ranging from 10°C to 40°C, this column is suitable for indoor commercial, institutional, or industrial environments. Its standard 650mm mounting dimension ensures broad compatibility with various desk and table frame designs.
From ergonomic furniture to smart automation tables, this L-shaped lifting column offers the performance, durability, and aesthetic flexibility demanded by today's advanced height-adjustable systems.
Let us know if you’d like a version tailored for specific markets such as medical, industrial, or education.
