| Maximum load | 800N |
| Maximum stroke | 500mm |
| Noise level | ＜ 48dB |
| Tube type | Outside: ∅70mm, Inside:∅63.5mm |
| Product appearance | Hole-free design |
| Operating temperature | 10°C-40°C |
| Mounting dimensions | 650mm |
| Maximum speed | 25mm/s |
| Feedback method | Hall Feedback |
| Column type | Formal L-shape |
| Surface finish | Electrostatic Plastic Powder Coating |
| Colors | White (RAL9016), Black (RAL9005), Gray (RAL9006) |
1. OKIN lifting columns are characterized by high efficiency and stability, smooth operation, and the special gears and screw assembly make it always silent lifting and lowering process.
2. The rounded motor box design makes the product beautiful and at the same time, avoids personal injury caused by user collision.
3. Safe and powerful OKIN lifting columns can be effectively used in product scenarios that comply with EN527 and BIFMA X5.5.

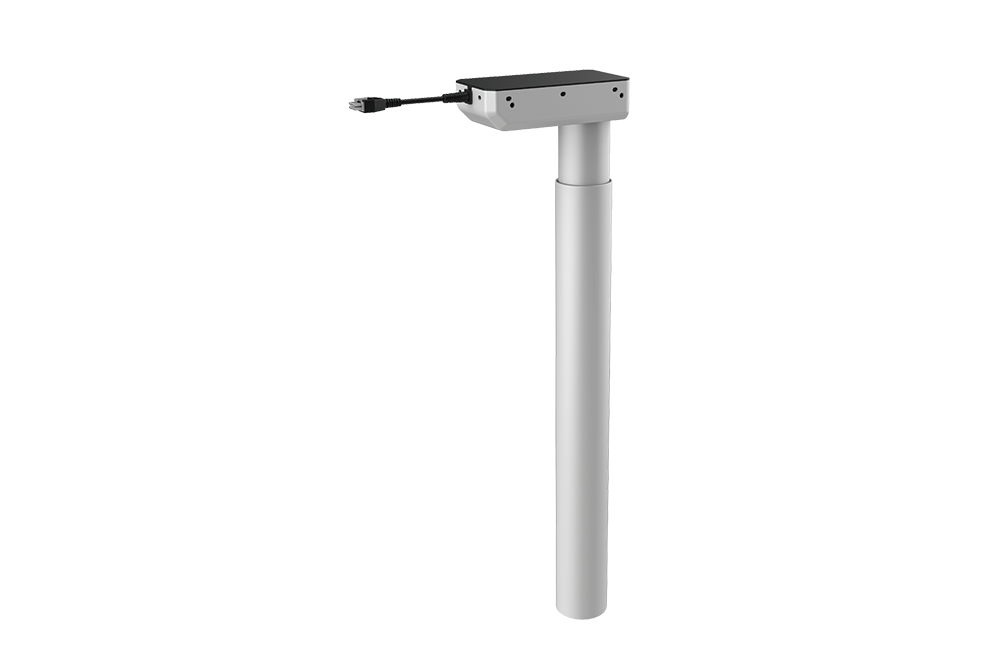

Engineered for smooth, reliable motion in modern ergonomic and industrial applications, this electric lifting column combines robust construction with refined motion control. Whether integrated into adjustable desks, workstations, medical carts, or automation systems, it delivers powerful lifting performance in a compact, clean-profile design.
Built to handle a maximum dynamic load of 800N, this column provides the strength required for heavy-duty tasks, while maintaining whisper-quiet operation at under 48dB—ideal for noise-sensitive environments such as offices, labs, or healthcare facilities. With a stroke length of up to 500mm, it enables generous vertical travel for a wide range of height-adjustable applications.
Featuring a formal L-shaped structure, this column enhances directional stability and ensures secure vertical movement. The hole-free outer surface contributes to a clean, modern aesthetic and minimizes dust accumulation, supporting easier maintenance and cleaner environments.
The outer tube diameter of 70mm and inner tube diameter of 63.5mm form a durable telescopic system, precisely manufactured for smooth extension and retraction. A 650mm mounting dimension allows for seamless integration into various frame systems.
Equipped with a Hall effect feedback system, this lifting column ensures precise positional tracking, making it ideal for synchronized multi-column applications. Perfect for desks, platforms, and workstations requiring accurate, repeatable motion control.
Finished with a durable electrostatic powder coating, the column is resistant to corrosion and surface wear, while offering a sleek, modern look. Available in three classic color options—White (RAL9016), Black (RAL9005), and Gray (RAL9006)—it fits effortlessly into corporate, medical, or industrial environments.
This electric lifting column delivers quiet strength, precision motion, and clean aesthetics—an ideal vertical actuation solution for OEMs, integrators, and system designers looking for performance without compromise.
