| Maximum load | 800N |
| Maximum stroke | 650mm |
| Noise level | ＜ 48dB |
| Tube type |
Outside: 80x50mm; Middle: 75x45mm; Inside: 70x40mm |
| Product appearance | None hole |
| Operating temperature | 10°C-40°C |
| Mounting dimensions | 560mm |
| Maximum speed | 35mm/s |
| Feedback method | Hall Feedback |
| Column type | Inverted L-Shape |
| Surface finish | Electrostatic Plastic Powder Coating |
| Colors | White (RAL9016), Black (RAL9005), Gray (RAL9006) |
1. OKIN lifting columns are characterized by high efficiency and stability, smooth operation, and the special gears and screw assembly make it always silent lifting and lowering process.
2. The rounded motor box design makes the product beautiful and at the same time, avoids personal injury caused by user collision.
3. Safe and powerful OKIN lifting columns can be effectively used in product scenarios that comply with EN527 and BIFMA X5.5.

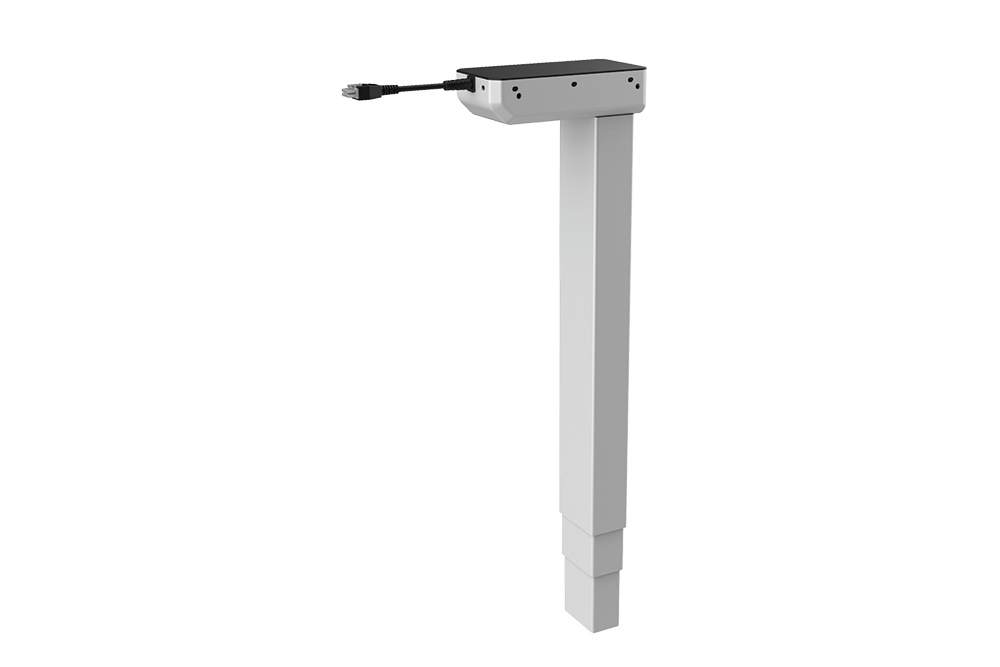

This telescoping lifting column is purpose-built to meet the demands of modern height-adjustable systems, combining a compact profile with high-performance linear actuation. Featuring a clever inverted L-shape design, it is well-suited for sleek integration into desks, equipment stands, medical carts, and more—where stability, strength, and smooth adjustment are essential.
With a vertical load capacity of up to 800N, this lifting column delivers strong and reliable elevation across a variety of applications. Whether supporting work surfaces, machinery platforms, or modular furniture systems, its 650mm stroke allows for wide-ranging adjustability with ease.
A maximum lifting speed of 35mm/s ensures quick height transitions, minimizing user downtime—ideal for fast-paced work environments where responsiveness is key.
The column features a robust three-section telescoping structure:
This graduated design enhances rigidity, minimizes wobble during operation, and supports smooth vertical movement even under load. Its rectangular profile further boosts lateral strength without compromising visual appeal.
Operating at below 48 decibels, the lifting mechanism remains virtually silent—ideal for offices, medical settings, or client-facing environments. The integrated Hall effect sensor provides precise position feedback, allowing for accurate and repeatable height adjustments when paired with a compatible control system.
The column is finished with a high-durability electrostatic plastic powder coating, offering protection against corrosion, scratches, and general wear, while maintaining a professional appearance. Available in three neutral color choices:
White (RAL9016) – Clean and minimal for clinical or modern interiors
Black (RAL9005) – Sleek and bold for premium or contrast-based designs
Gray (RAL9006) – Balanced and industrial for all-purpose integration
With a 560mm mounting dimension, this column is easy to integrate into a wide variety of base frames and lifting systems.
Whether you're developing height-adjustable office furniture, ergonomic workstations, or precision-controlled platforms, this inverted L-shaped telescoping lifting column offers a powerful, quiet, and dependable solution—designed to elevate both performance and aesthetics in your product design.
