| Input Voltage | 29V DC |
| Standby Power | 0.5W |
| Anti-collision Function | Current + Gyro Detection |
| Product Appearance | Black |
| Product Weight | About 210g |
| Product Features | Memory settings, high and low limit settings, display unit selection, display height adjustment, anti-collision sensitivity adjustment, slow start and stop, return in case of obstruction, overload protection, overheating protection, etc. |
| Output Power | Determined by switching power supply |
| Number of Control Columns | 2 |
| Mounting Method | Under-desk locking payoff |
| External Dimensions | 167x70x30mm |
| Operating Temperature | 10℃-40℃ |
Engineered for efficiency and smart motion control, the Electric Lifting Column Control Box is the ideal command hub for dual-column height-adjustable systems. Designed for seamless integration into modern office furniture, medical equipment, or industrial workstations, this unit combines intelligent features, comprehensive safety functions, and reliable performance—all within a compact and lightweight form.

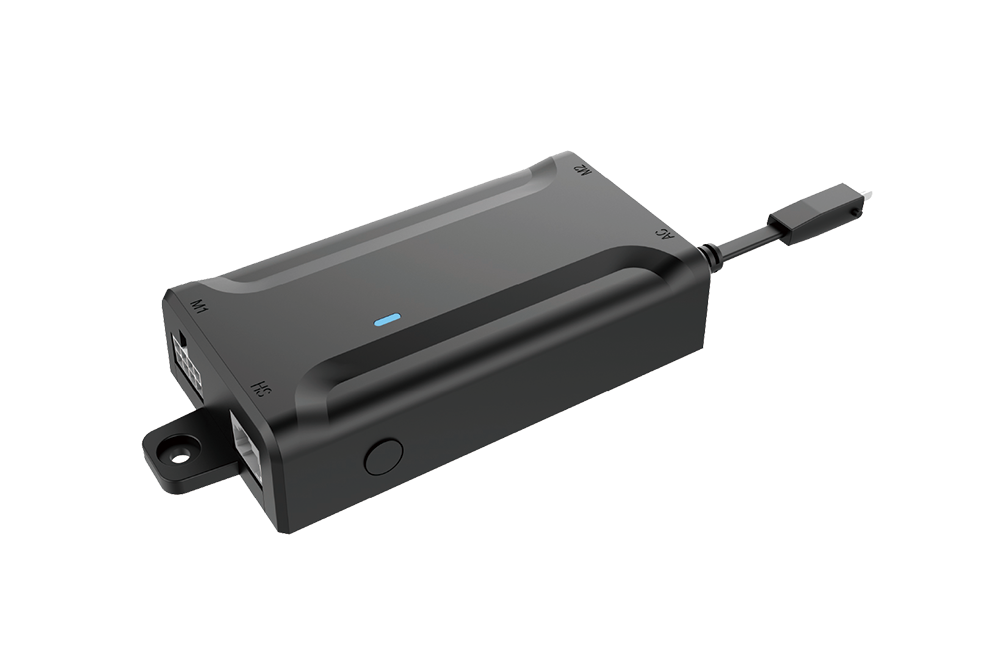

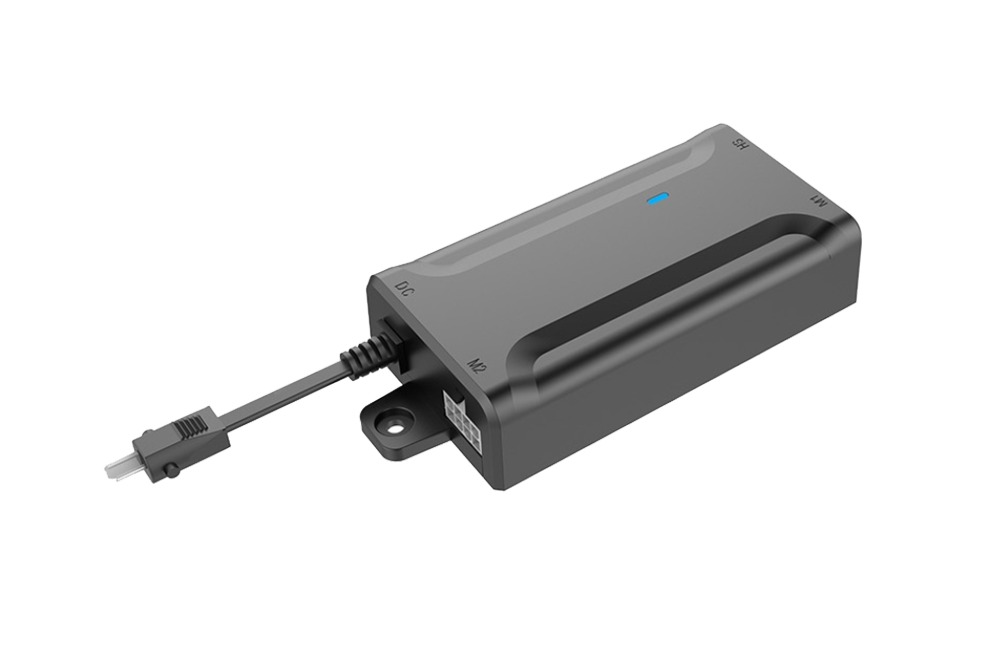

Housed in a sleek matte black shell, the control box measures just 167mm × 70mm × 30mm and weighs approximately 210 grams. Despite its small footprint, it delivers robust synchronized control for two lifting columns, ensuring smooth and stable motion across your setup.
The 29V DC input supports safe, low-voltage operation, while the output power adjusts based on your selected switching power supply—providing flexibility for system designers and integrators.
To ensure safe operation in shared or dynamic environments, this control box features a dual-mode anti-collision detection system. It continuously monitors both current fluctuations and gyroscopic shifts, instantly responding to obstructions or misalignment by stopping or reversing motion—protecting both users and equipment.
Installation is simple thanks to the under-desk lock-in mounting system, which secures the control box without affecting workspace functionality or aesthetics. Designed for daily use, it operates reliably within ambient temperatures of 10°C to 40°C, making it suitable for most indoor environments.
This compact control box is perfectly suited for:
Height-adjustable office desks
Mobile medical carts
Laboratory workstations
Multi-column lift systems in ergonomic or industrial environments
It adds intelligent motion control, safety, and design flexibility to any motorized workspace configuration.
