| Input Voltage | 100V-240V AC |
| Standby Power | ＜0.1W |
| Anti-collision Function | Current + Gyro Detection |
| Product Appearance | Black |
| Product Weight | About 750g |
| Product Features | Memory settings, high and low limit settings, display unit selection, display height adjustment, anti-collision sensitivity adjustment, slow start and stop, return in case of obstruction, overload protection, overheating protection, etc. |
| Output Power | 240W |
| Number of Control Columns | 3 |
| Mounting Method | Under-desk locking payoff + snap-on quick release |
| External Dimensions | 318x95x47mm |
| Operating Temperature | 10℃-40℃ |

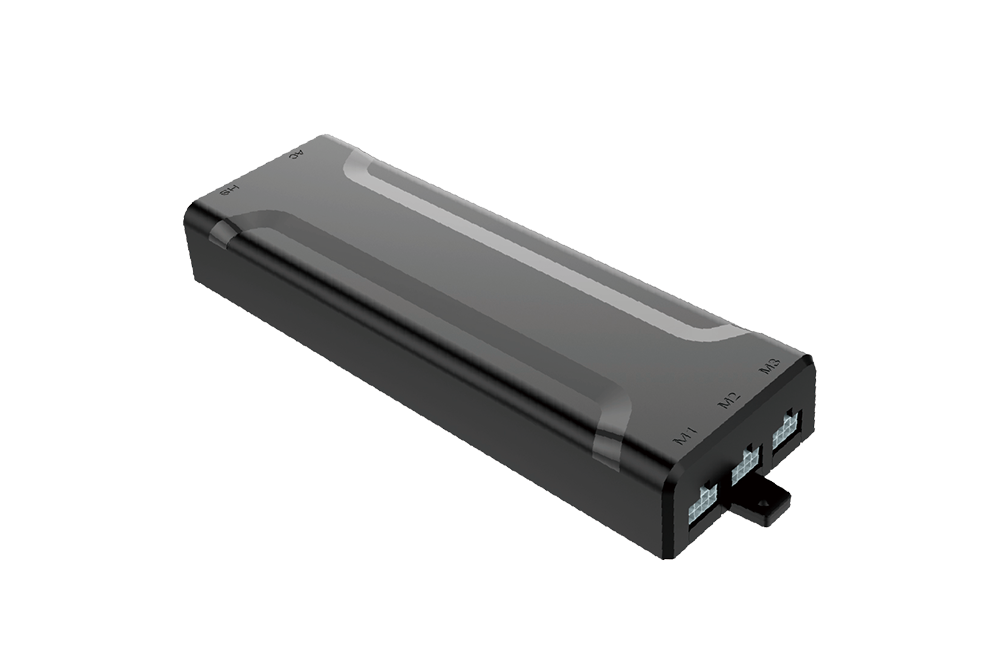

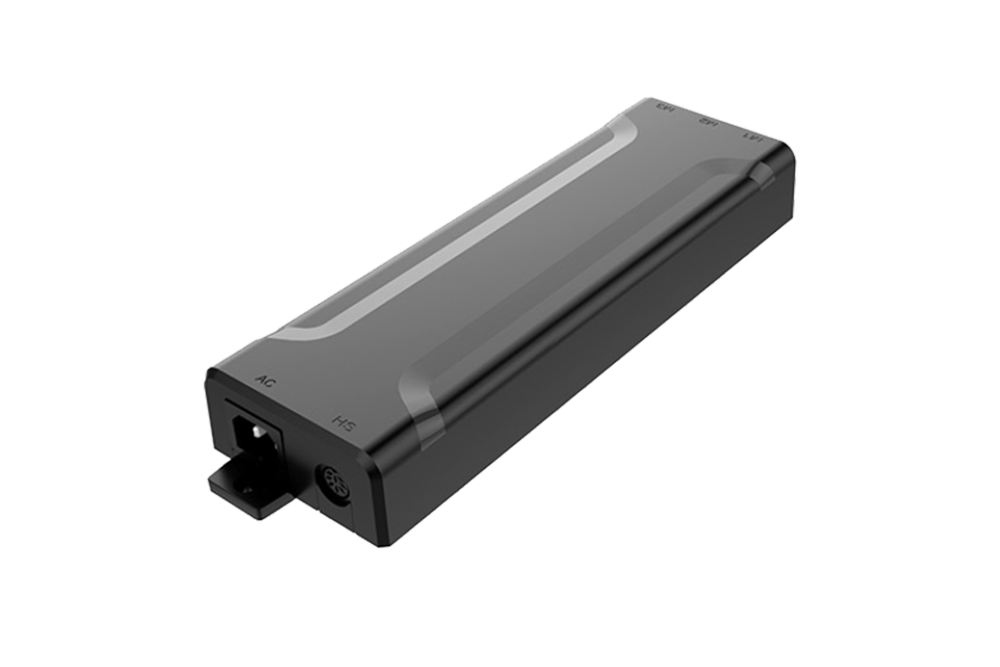

Upgrade the way you manage multi-column lifting solutions with our Lifting Column Remote Control Unit—a compact yet powerful controller designed to deliver precision, safety, and ease of use in height-adjustable applications. Whether it’s ergonomic desks, industrial workbenches, or customized lift systems, this controller offers reliable and synchronized control over up to three lifting columns from a single interface.
Built for versatility, this unit supports a universal input range of 100V–240V AC, making it compatible with global power standards. Despite its compact size, it delivers a 240W output, enabling smooth, synchronized lifting across three columns while maintaining structural alignment—even under variable load conditions.
The under-desk mounting design features both quick-release and locking mechanisms, offering a balance of stability and easy maintenance access.
Safety is central to the design. A dual-layer anti-collision system integrates current-sensing and gyroscopic feedback to detect obstructions, tilting, or abnormal loads. In response, the system will automatically stop or reverse motion to prevent damage to users, furniture, or nearby objects.
Designed for intuitive operation, the unit includes a range of smart features to adapt to user needs:
Four programmable height memory presets
Configurable minimum and maximum height limits
Toggle between metric and inch display units
Display height fine-tuning
Adjustable anti-collision sensitivity
Soft start and smooth stop for quiet, stable motion
Automatic return after obstruction
Built-in overload and overheat protection
This remote control unit is ideal for:
Sit-stand desks with advanced lift requirements
Height-adjustable conference tables
Medical, lab, or technical furniture
Custom installations requiring synchronized vertical lift across three columns
Its remote functionality and compact form make it especially suited for environments where ease of access, flexibility, and safety are top priorities.
Engineered for seamless integration into office, healthcare, and industrial systems, this control unit provides the precision, stability, and user safety that today’s motion systems demand—backed by a compact design and versatile configuration options.
