| Fits Screen Size | 32-70in if your TV is 55",65"or 70" inches, it's best to ensure that the VESA holes are centered. This will provide adequate clearance between the screen and the ceiling. If the holes are not centered, you may need additional planks to increase the distance between the mount and the ceiling. |
| Adjust Method | Electric Motor, Remote Control |
| Tilt Range | 0-80 degrees |
| Fully Expansion Time | 32s |
| Adjust Speed | 2.5°/s |
| Weight Capacity | 88lbs/40kg |
| Adjust Distance | Within 98 feet/30m |
| Reserved space for 32-55"TV | 54"*33" ceiling space |
| Reserved space for 65"TV | 63"*38" ceiling space |
| Reserved space for 70"TV | 67"*40.5" ceiling space |
| Installation Suggestion | For optimal safety and performance, we highly recommend two-preson installation of this ceiling TV mount. |

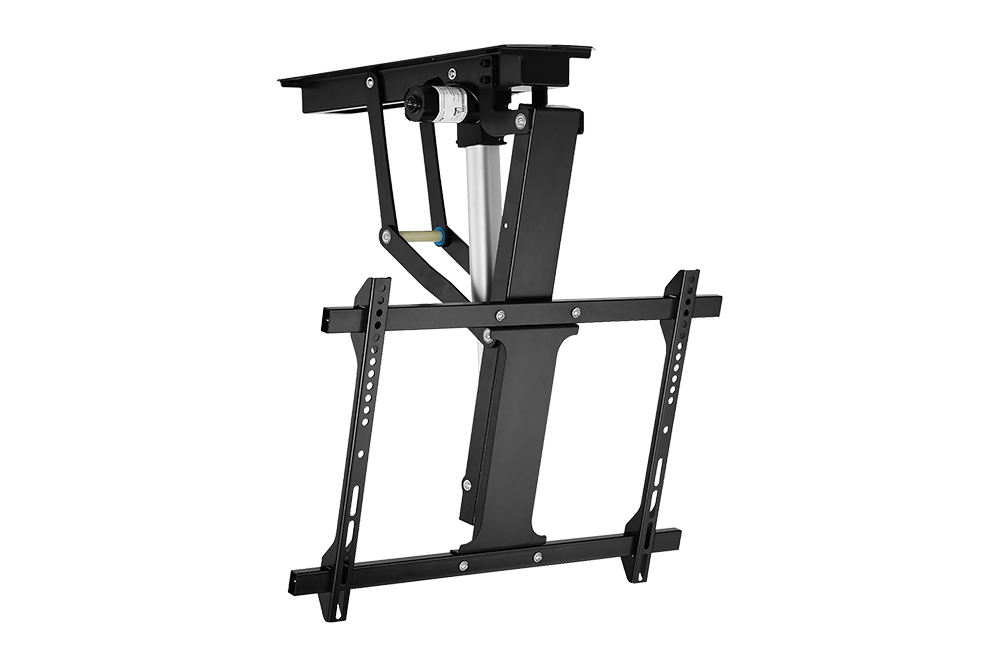

Transform your space with the modern convenience of the Electric Adjustable Ceiling TV Mount, designed to support flat-panel TVs from 32 to 70 inches. Ideal for both home and commercial use, this ceiling-mounted system offers smooth motorized motion, a wide tilt range, and a smart space-saving design.
With the touch of a button, the built-in electric motor smoothly adjusts the TV’s angle, offering a tilt range of 0 to 80 degrees. Whether you're reclining on the couch or standing across the room, you'll always find the optimal viewing angle. The included remote control allows hands-free adjustment from up to 98 feet (30 meters) away—providing effortless convenience from virtually anywhere in the room.
The lift mechanism operates at a consistent speed of 2.5° per second, completing a full tilt in approximately 32 seconds. Designed for minimal noise and maximum control, it enhances your viewing experience without disrupting the environment.

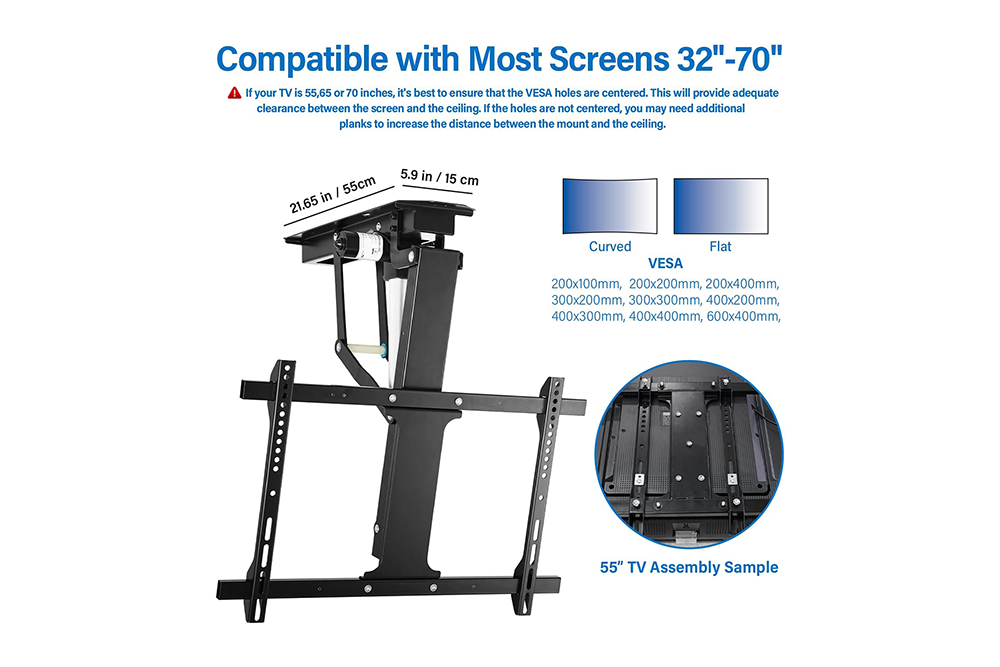

Engineered to support up to 88 lbs (40 kg), this ceiling mount is compatible with VESA patterns common to most 32–70" TVs. For larger screens (55", 65", 70"), ensure the VESA mounting holes are centered to maintain proper clearance from the ceiling. If offset, additional mounting components may be needed to achieve the best fit.

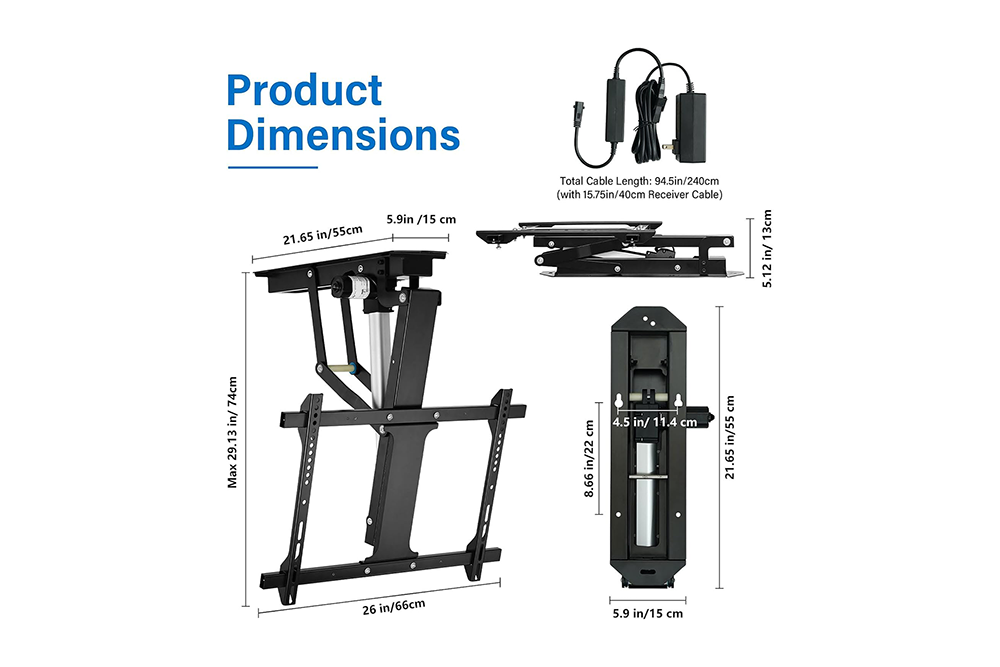

Before installation, verify that your ceiling can accommodate the required dimensions:
32"–55" TVs: Recommended ceiling clearance – 54" x 33"
65" TVs: Recommended ceiling clearance – 63" x 38"
70" TVs: Recommended ceiling clearance – 67" x 40.5"
For safety and optimal alignment, installation should be performed by two people. This ensures easier handling of the unit's weight and movement during setup.
Home theaters
Living rooms with limited wall space
Conference rooms
Public displays
RVs or yachts needing space-efficient AV solutions
Elevate your entertainment—literally—with the Electric Adjustable Ceiling TV Mount: a sleek, motorized solution that combines modern technology, smart design, and safety-focused engineering.
